DTSB-1200

$154.91

Product Information

1200 lb. capacity Double-Toggle-Vertical hold down clamp. Swivel Base.

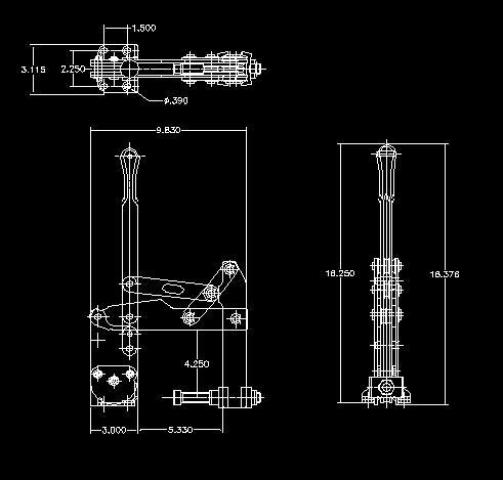

Available Downloads:  2-D Drawings | 3-D STP

Specification
Weight: 8.8 lbs 4 kg
Holding Capacity: 1800 lbs 8007 N
Holding Capacity 4.25 in end of Toggle Bar: 900 lbs 4003 N
Maximum Clamping Thickness: 5.31 in 134.9 mm
:
Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (W-470020):

Product Code: 80450
