H-200

$10.87

Product Information

200 lb. capacity Horizontal Hold Down Clamp. Flanged Base. Open Toggle Bar.

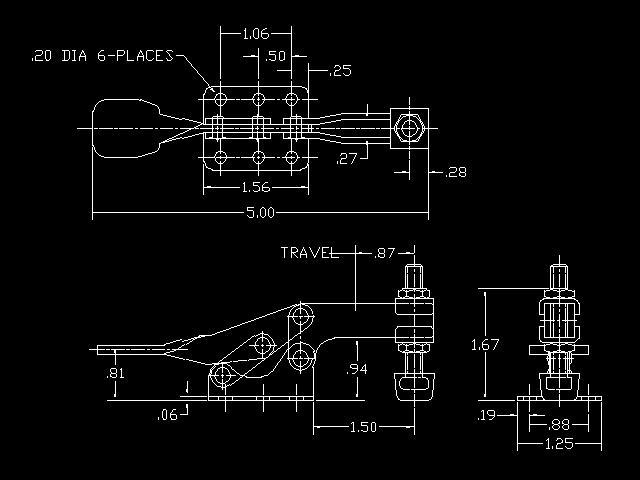

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 0.24 lbs 0.11 kg
Holding Capacity: 200 lbs 890 N
: 360 lbs 1601 N
Maximum Clamping Thickness: 0.94 in 23.8 mm
Throat Depth: 1.5 in 38.1 mm
Also available in Stainless steel (H-200-SS)
Included 1:Spindle Assembly (470007-RC) Spindle Cap (170003):

Product Code: 80202
