H-400X20

$13.79

Product Information

400 lb. capacity Horizontal Hold Down Clamp. Flanged Base. Open Toggle Bar.

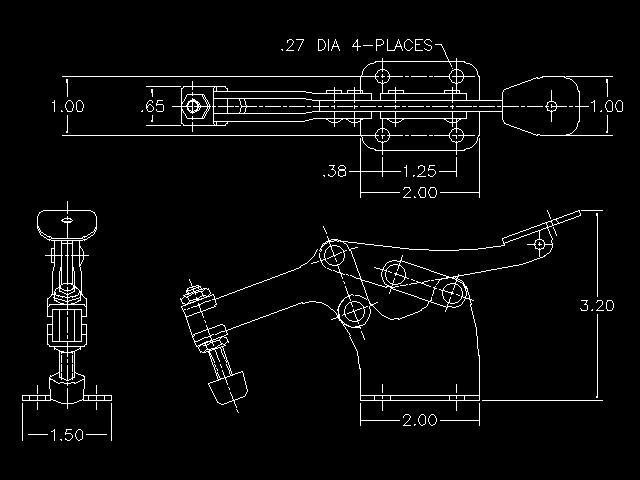

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 0.62 lbs 0.28 kg
Holding Capacity: 400 lbs 1779 N
Holding Capacity .19 in Front of Base: 880 lbs 3914 N
Maximum Clamping Thickness: 1.06 in 27 mm
Throat Depth: 2.5 in 54 mm
Centerline of Toggle Bar is Angles 20degrees for angular clamping
Included 1:Spindle Assembly (W-470007) Spindle Cap (170003):

Product Code: 80205
