H-601

$15.10

Product Information

600 lb. capacity Horizontal Hold Down Clamp. Flanged Base. Slotted Toggle Bar.

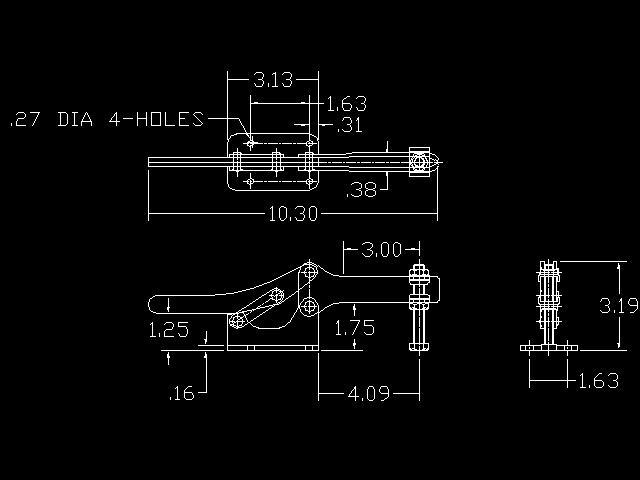

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 1.471 lbs 0.65 kg
Holding Capacity: 600 lbs 2669 N
Holding Capacity 1.13 in Front of Base: 1500 lbs 6672 N
Maximum Clamping Thickness: 1.75 in 44.5 mm
Throat Depth: 4.09 in 104 mm
Included 1:Spindle Assembly (470600):

Product Code: 80209
