Product Information

1200 lb. capacity vertical hold down clamp. Cam action. Swivel Base Open Toggle Bar.

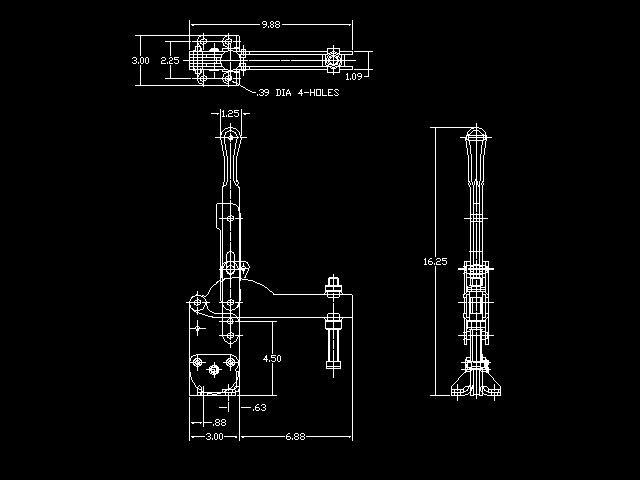

Available Downloads:  2-D Drawings | 3-D STP | 3-D IGS


Weight: 7.9 lbs 3.58 kg
Holding Capacity: 1200 lbs 5338 N
Holding Capacity 3.13 in Front of Base: 2200 lbs 9786 N
Maximum Clamping Thickness: 4.75 in 120.7 mm
Throat Depth: 6.19 in 157.2 mm
Cam action allows for variations of up to 7/16in in the material being clamped without spindle adjustment Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (N-470020):

Product Code: 80350
