Product Information

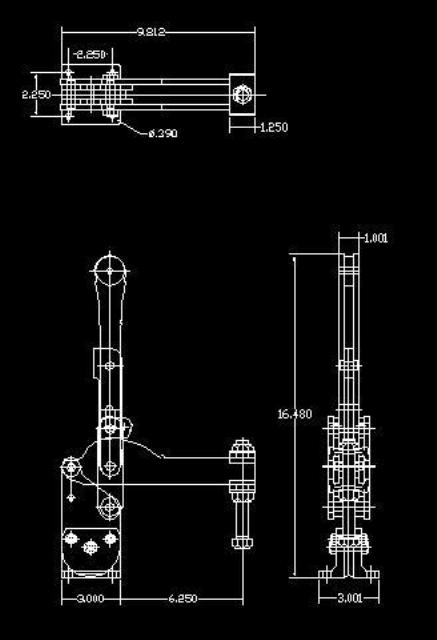

2,000 lb. Capacity Vertical Hold Down Clamp. Cam Action. Swivel Base. Open Toggle Bar.


Holding Capacity: 2000 lbs 8896 N
Holding Capacity 3.25 in Front of Base: 3700 lbs 16458 N
Maximum Clamping Thickness: 4.75 in 120.7 mm
Throat Depth: 6.38 in 161.9 mm
Cam action allows for variations of up to 3/8in in the material being clamped without spindle adjustment Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel

Product Code: 80360
