Product Information

800 lb. capacity vertical hold down clamp. Cam action.  Swivel Base.  Open Toggle.

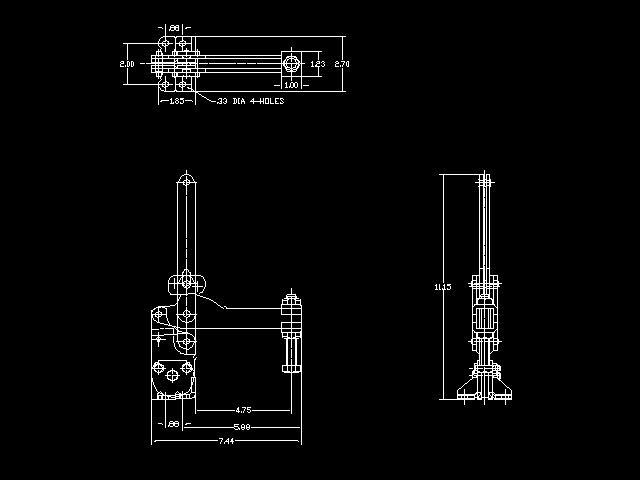

Available Downloads:  2-D Drawings | 3-D Drawings

Weight: 3.85 lbs 1.70 kg
Holding Capacity: 800 lbs 3559 N
Holding Capacity 2.31 in Front of Base: 1500 lbs 6672 N
Maximum Clamping Thickness: 3.47 in 88.1 mm
Throat Depth: 4.75 in 120.6 mm
Cam action allows for variations of up to 11/32in in the material being clamped without spindle adjustment Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (N-470078):

Product Code: 80340
