SB-1200

$60.99

Product Information

1200 lb. capacity vertical hold down clamp. Swivel Base. Open Toggle Bar.

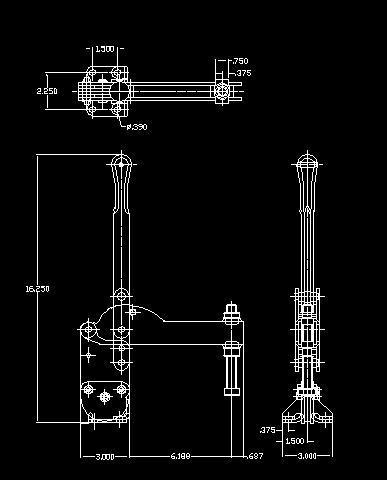

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 7.9 lbs 3.58 kg
Holding Capacity: 1200 lbs 5338 N
Holding Capacity 2.63 in Front of Base: 2570 lbs 11432 N
Maximum Clamping Thickness: 3.13 in 79.4 mm
Throat Depth: 6.19 in 157.2 mm
Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (N-470020):

Product Code: 80186
