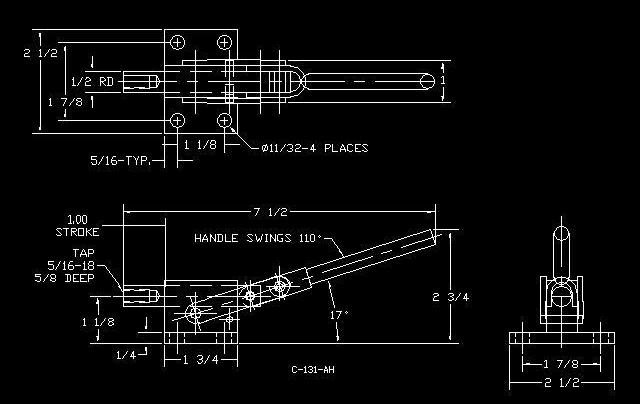

C-131-AH

Product Information

2,500 lb. capacity Push Clamp.  Flanged Base with four Mounting Holes.  Round Push-Rod.  Push-rod is drilled and tapped to accept 5/16-18 bolt.



Specification
Weight: 1.2 lbs 0.55 kg
Holding Capacity: 2500 lbs 11121 N
:
Stroke: 1 in 25.4 mm
Centerline Height: 1.13 in 28.6 mm
Push-rod is drilled and tapped to accept 5/16-18 bolt
Included 1:Flanged base is drilled with four mounting holes.:

Product Code: C-1UOTY613

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
50+$35.76
250+$33.08
