C-151-L

Product Information

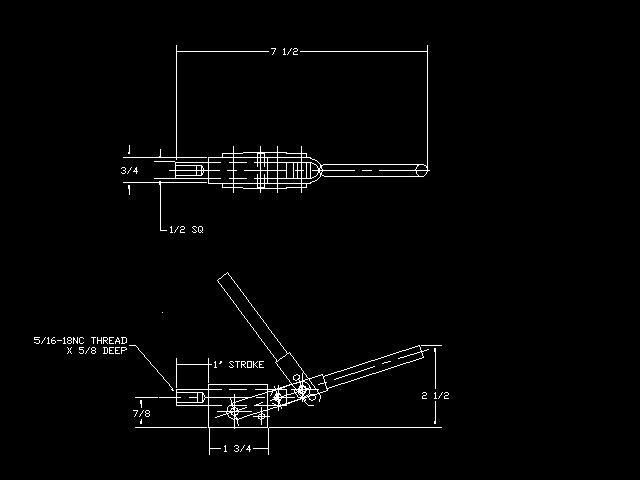

2,500 lb. capacity Push Clamp with No-Load Lock option . Weld Base.  Square Push-rod. Push-rod is drilled and tapped to accept 5/16-18 bolt.



Specification
Weight: 0.8 lbs 0.36 kg
Holding Capacity: 2500 lbs 11121 N
:
Stroke: 1 in 25.4 mm
Centerline Height: 0.88 in 22.3 mm
Push-rod is drilled and tapped to accept 5/16-18 bolt (sold seperately)

Product Code: C-15RHZF47

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
50+$45.14
250+$42.23
