C-151-ML

$46.66

Product Information

2,500 lb. capacity Push Clamp with No-Load Lock option. Weld Base. Square Push-rod. Push-rod is drilled and tapped to accept M8 x 1.25 bolt.

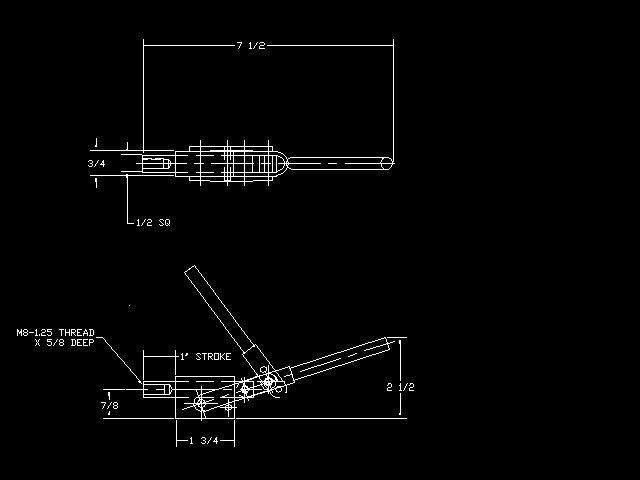

Available Downloads:  2-D Drawings | 3-D Drawings



Specification
Weight: 0.8 lbs 0.36 kg
Holding Capacity: 2500 lbs 11121 N
:
Stroke: 1 in 25.4 mm
Centerline Height: 0.88 in 22.3 mm
Push-rod is drilled and tapped to accept M8 x 1.25 bolt (sold seperately)

Product Code: C-18CKFJ12
